Classroom Display Guide

Touchscreen Controls

• IWS Computer: Tap the icon to display the classroom computer.
• Document Camera: Tap the icon to display the document camera.
• Laptop: Connect your device, then tap the Laptop icon (top right corner).
• System Off: Tap this icon after each class or session.
• Blank Screen: Tap the Blank icon to show a white screen.
• Freeze Screen: Tap the Freeze icon to freeze the current display.

Volume Controls

• Use the buttons on the right side of the panel to increase or decrease volume.
• Tap the volume icon to mute or unmute.

TV Display

• If the image is not showing, press the power button located on the back left side of the TV.

Cleartouch Panel

• The Cleartouch panel stays on by default.
• If it’s not displaying, tap the standby button located on the front of the panel.

Need Help?
Tech Support: (321) 674-7284

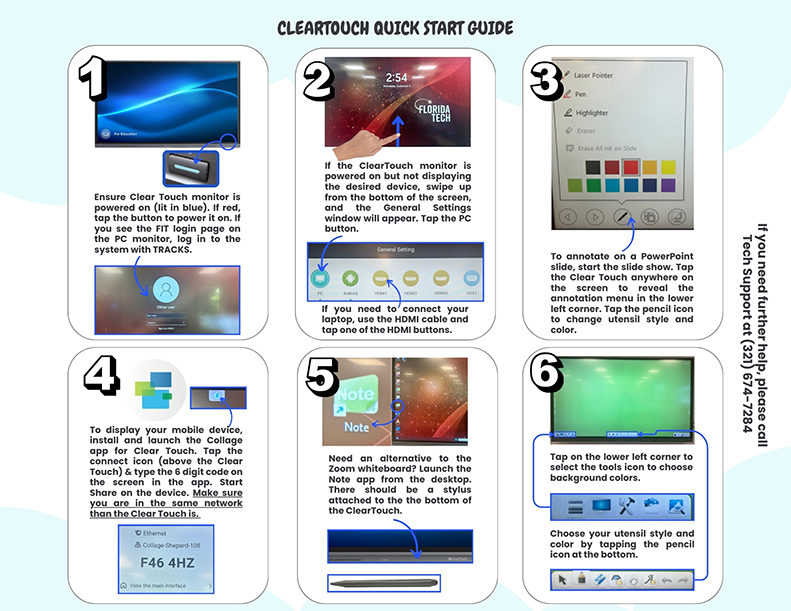

Clear Touch Monitor & Display Guide

1. Powering On

• Ensure the Clear Touch monitor is powered on.
• If the power light is blue, it’s on.
• If it’s red, tap the power button to turn it on.
• If you see the FIT login page on the PC monitor, log in using your TRACKS credentials.

2. Displaying Devices

• If the Clear Touch monitor is on but not showing the desired device:
• Swipe up from the bottom of the screen to open the General Settings window.
• Tap the PC button to display the classroom computer.
• To connect a laptop, use an HDMI cable and tap one of the HDMI buttons.

3. Annotating on PowerPoint

• Start the PowerPoint slideshow.
• Tap anywhere on the Clear Touch screen to reveal the annotation menu in the lower left corner.
• Tap the pencil icon to choose utensil style and color.

4. Displaying Mobile Devices

• Install and launch the Collage app for Clear Touch.
• Tap the connect icon (above Clear Touch) and enter the 6-digit code shown on the screen into the Collage Share section of the app.
• Ensure your mobile device is connected to the same network as Clear Touch.

5. Using the Note App

• For an alternative to Zoom whiteboard, launch the Note app from the desktop shortcut.
• A stylus is attached at the bottom of the Clear Touch monitor.

6. Annotation Tools

• Tap the lower left corner to access background color options.
• Tap the pencil icon at the bottom to select utensil style and color.

Need Help?

Call Tech Support at (321) 674-7284
